InspectMind AI Review
Evaluate InspectMind AI for drawing checks, cited findings, revision review, pricing visibility, and the limits a project team should test.
This InspectMind AI review finds a credible second-pass drawing checker, not a replacement for an architect or engineer: a 60-sheet set checked against two codes prices at $130, and every candidate finding is meant to be accepted or dismissed against its cited evidence. The buy makes sense when those citations shorten professional review; it does not when your team expects a compliance certificate, a takeoff, or a field punch-list system.

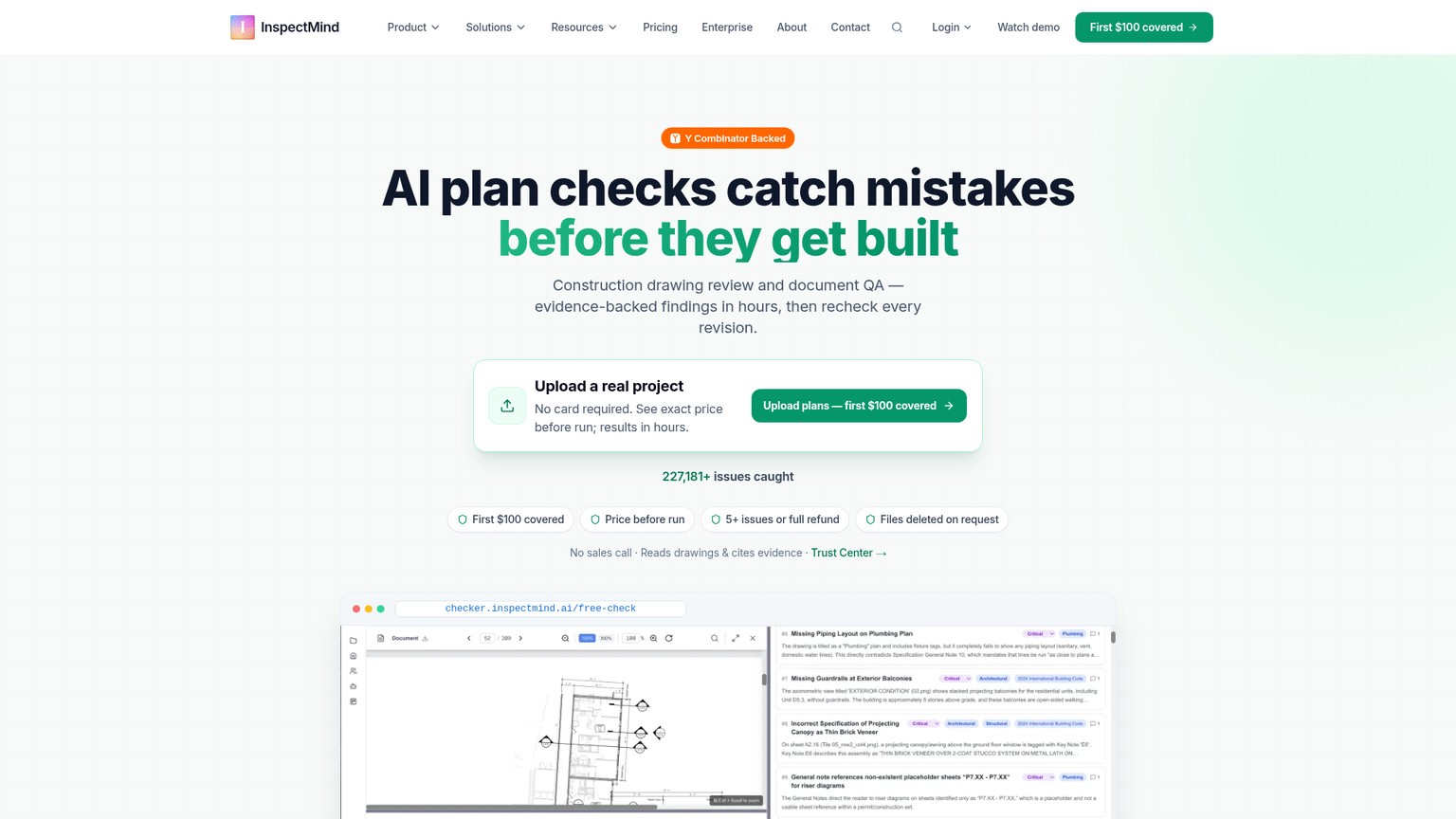

InspectMind AI Review: What It Actually Is
InspectMind AI is a pay-per-check review layer for construction PDFs. You give it drawings, specifications, selected codes, and optional internal standards; it returns a prioritized list of possible coordination, code, specification, and constructability problems for a qualified person to review. Its useful output is not an accuracy score or a pile of comments. It is a candidate issue attached to enough source context that an architect, engineer, contractor, developer, or owner's representative can confirm it, dismiss it, or send it to the responsible designer. That makes InspectMind a second pass before permit, bid, or construction, never the authority that approves a design. The current product and pricing pages were verified on 8 September 2026 against InspectMind's live site.
The alternatives are not interchangeable. The right shortlist depends on whether you need self-serve PDF analysis, a broader code-review workspace, human markup and collaboration, or a sales-led design QA system.
Who InspectMind Is For, and Who Should Skip It
InspectMind AI fits a project team that already owns professional review and wants a broad, inexpensive sweep before a consequential handoff. The strongest first buyer is not a firm trying to automate sign-off. It is a firm with a known drawing set, at least one issue the team already understands, and enough reviewer capacity to judge the returned evidence.
An architecture or engineering practice can use it before a permit submission to look for inconsistent notes, missing details, code questions, and conflicts between disciplines. A general contractor or developer can use it before pricing or construction to surface questions that should return to the design team. An owner's representative can use it as an independent issue-discovery pass, provided the responsible designers still make the technical decisions.
Skip InspectMind when the bottleneck is not issue discovery. Three alternatives cover the most common mismatches.

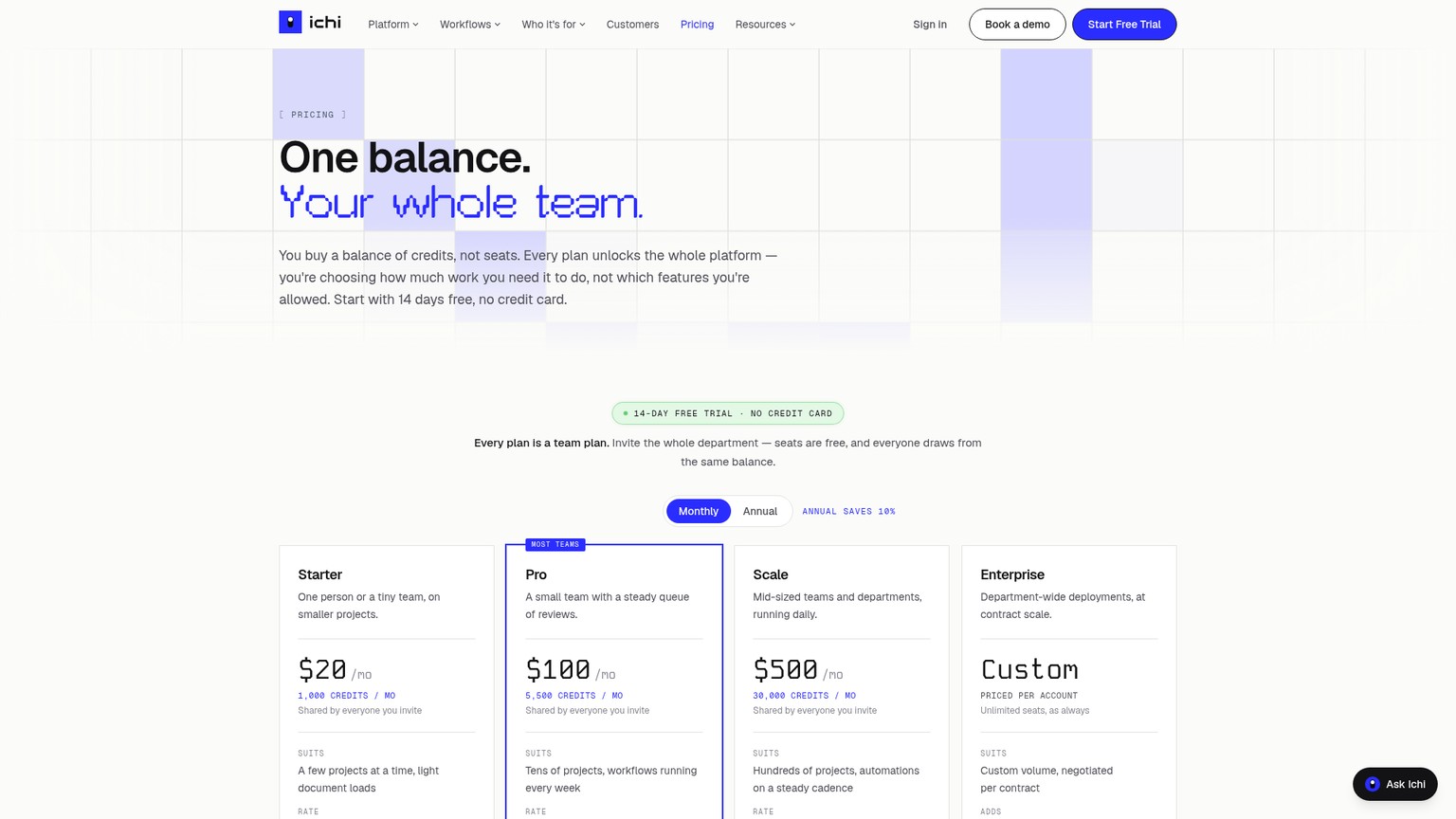

Choose Ichi for a broader review workspace
Ichi is the stronger alternative when code research, plan-set reading, comment letters, reusable workflows, and a shared organizational workspace belong in the same system. Its paid plans include the full platform and meter AI processing through team credits rather than seats. Monthly pricing is $20 for 1,000 credits, $100 for 5,500, and $500 for 30,000; Enterprise is priced per account. A 14-day trial requires no card, according to Ichi's live pricing page.
Choose Ichi if the work starts before a plan set arrives and continues after findings become formal review documents. Skip it if a variable credit model is harder to budget than a known price per drawing set.

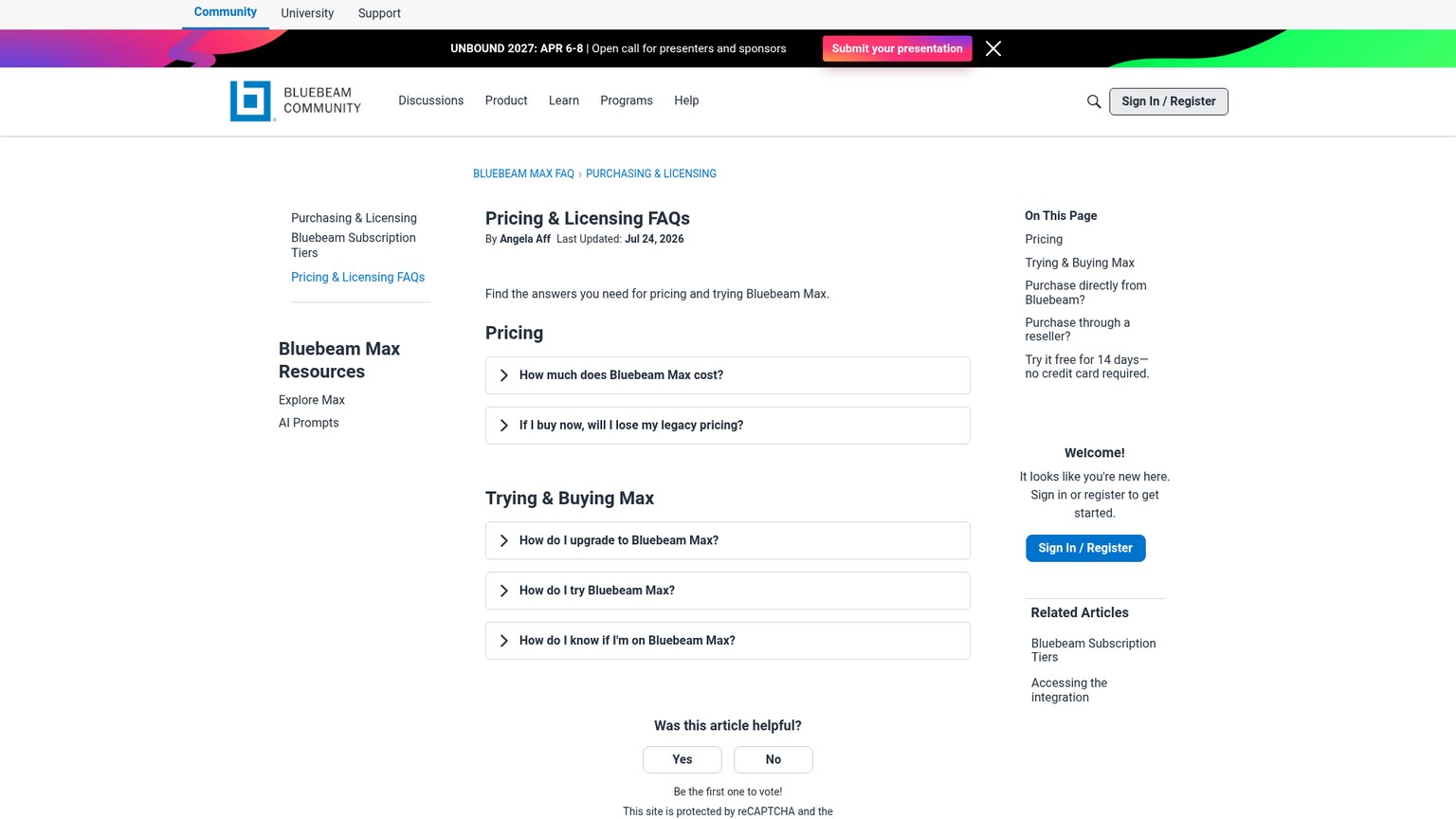

Choose Bluebeam for markup, overlays, and collaboration
Bluebeam is the better alternative when reviewers spend their day inside PDFs and need measurements, overlays, markups, Studio collaboration, and controlled drawing workflows. Basics is $260 per user per year, Core is $330, Complete is $440, and Max carries an introductory price of $590. Max adds AI drawing review and comparison; the public Smart Review scope names missing sheets, missing door or plumbing fixture tags, and gridline consistency.
Choose Bluebeam Max when AI should live beside a mature human markup process. Choose Core instead when manual overlay and collaboration solve the actual problem. InspectMind is the cleaner purchase when you want a broad pay-per-set issue sweep without buying a seat for every reviewer.

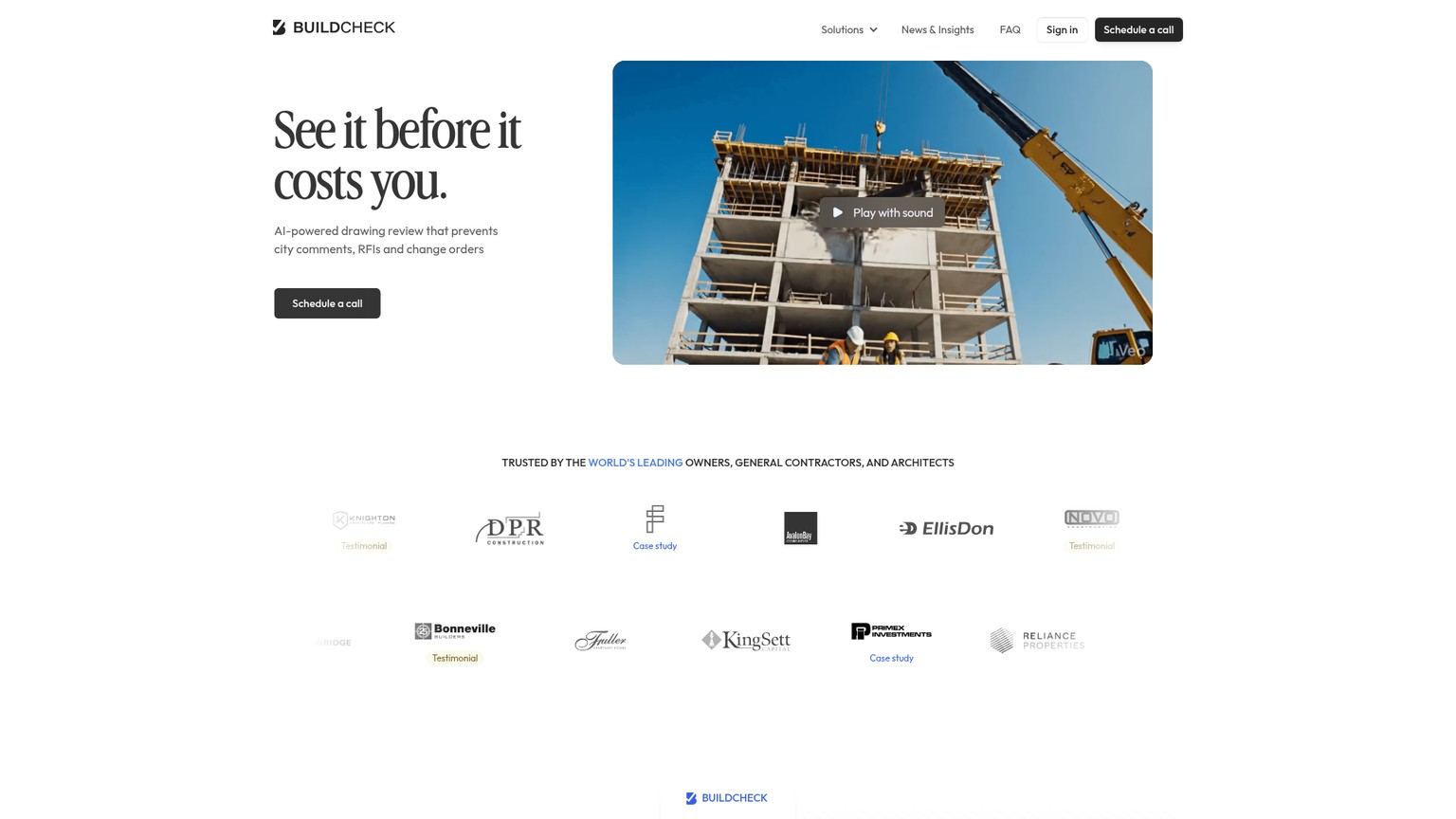

Choose BuildCheck for a sales-led team deployment
BuildCheck is the closer alternative for owners, general contractors, and architects that want drawing and specification analysis plus assignments, grouped issues, collaboration, and back-checking inside one managed workflow. Its site describes intake, analysis, review, and issue management, but publishes no self-serve price and routes buyers to a scheduled call.
Choose BuildCheck when procurement, rollout support, and an ongoing collaborative design-review environment matter more than immediate checkout. Choose InspectMind when one team wants to upload a bounded set, see the price, and buy without a sales cycle.

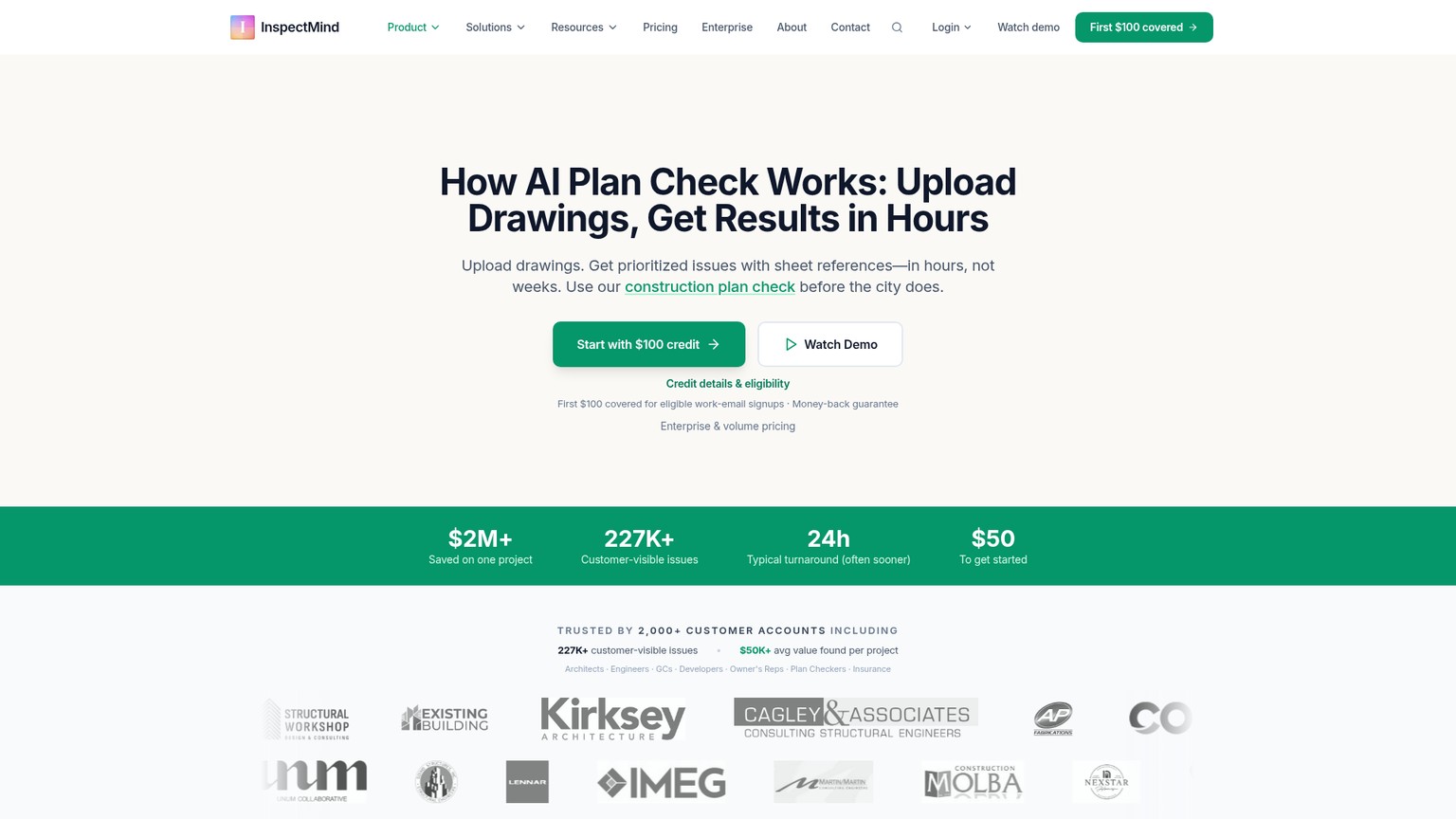

InspectMind Plan Checker Workflow

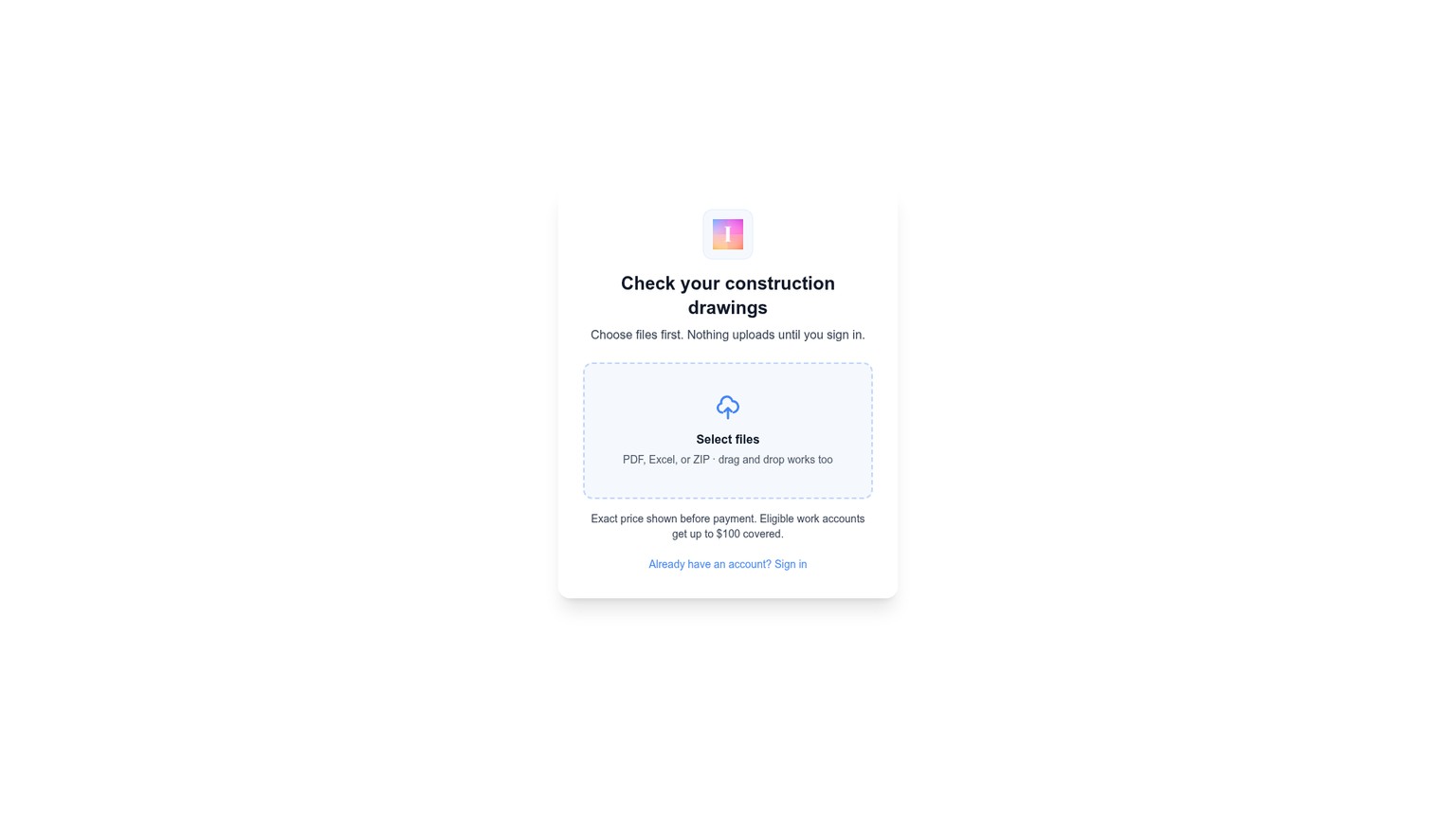

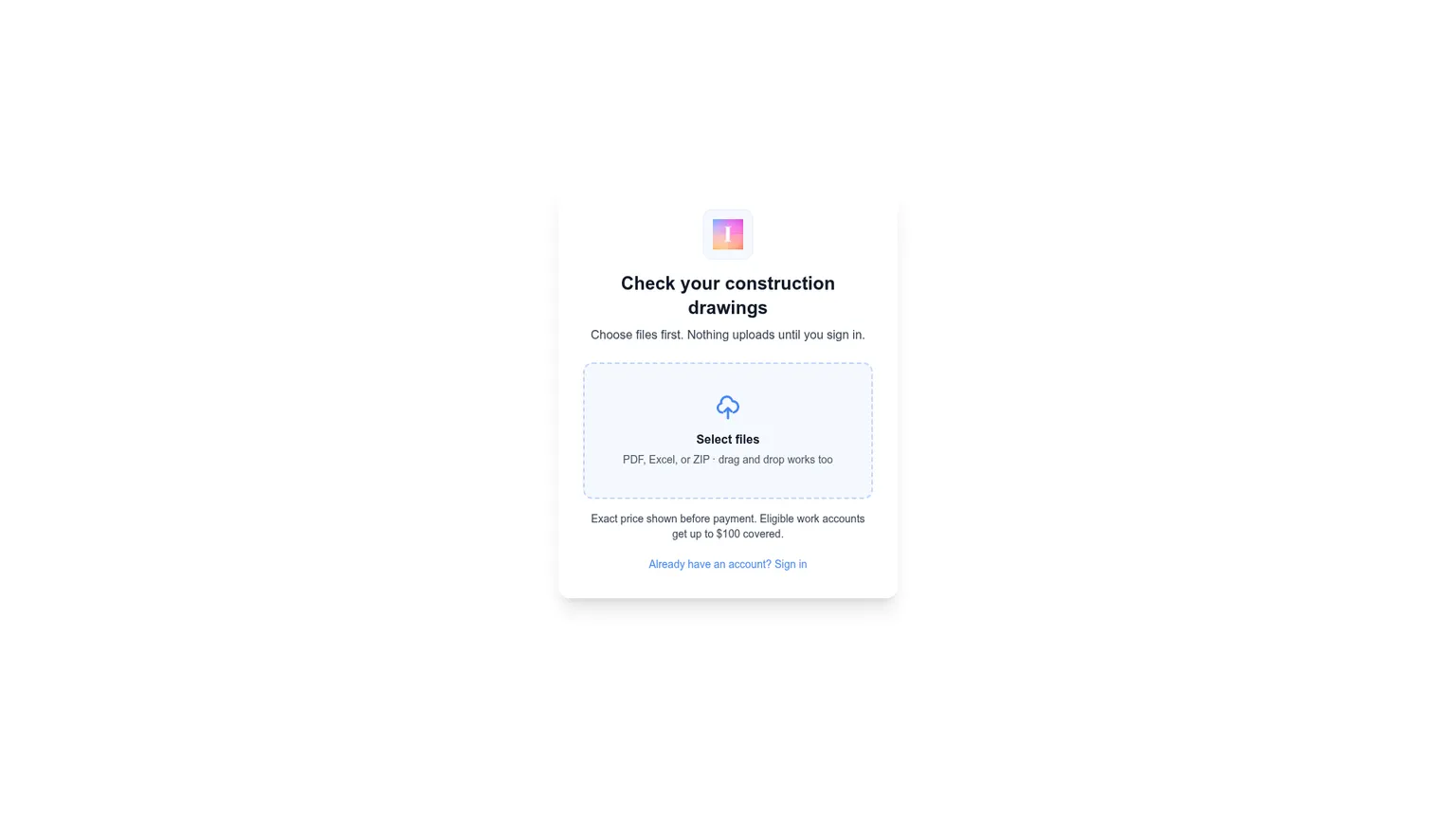

InspectMind AI keeps the public start deliberately narrow: choose a PDF, Excel file, or ZIP, then sign in before anything uploads. The public checker states that nothing uploads until sign-in and that the exact price appears before payment. That is enough to verify the checkout boundary, but not enough to run a known issue and clean control without an account and a permitted project file.
A defensible production workflow has four gates.
Define the review set
Select the drawing revision, specifications, calculations or reports, applicable code editions, and any internal checklist. Remove superseded files. A finding against the wrong revision can be perfectly cited and still waste the reviewer's time.
Run a bounded scope
Confirm which drawings, references, and code checks are included before payment. Treat the first run as issue discovery, not an automated approval. InspectMind says it can read architectural, structural, civil, MEP, fire/life-safety, scanned, hand-drawn, and native digital documents.
Adjudicate every candidate
Open the cited sheet, detail, specification, or code section. Check the revision and code edition, then record whether the issue is accepted, dismissed, or needs a responsible designer's answer. Severity is a queue order, not proof.
Export decisions, not raw output
InspectMind supports Excel, PDF, Procore, and Autodesk Construction Cloud outputs. Export the reviewed disposition and owner for each accepted item. A raw AI list pushed into the project system simply moves the verification burden downstream.
The first rollout should use a completed or late-stage project the team knows. Seed the evaluation with a known issue, identify a genuinely clean control area, and predefine what counts as a useful finding. The useful operating metrics are acceptance rate, dismissal reason, time to verify, severity calibration, and whether the evidence points to the correct source. A long issue list alone proves only that the system can produce a long issue list.
Cited Findings Are the Capability That Matters
InspectMind AI earns review time when each finding collapses the search problem. A reviewer should not have to hunt through hundreds of sheets to discover what the model saw. The product says each issue carries a sheet, detail, specification, or code reference, with severity and supporting context.

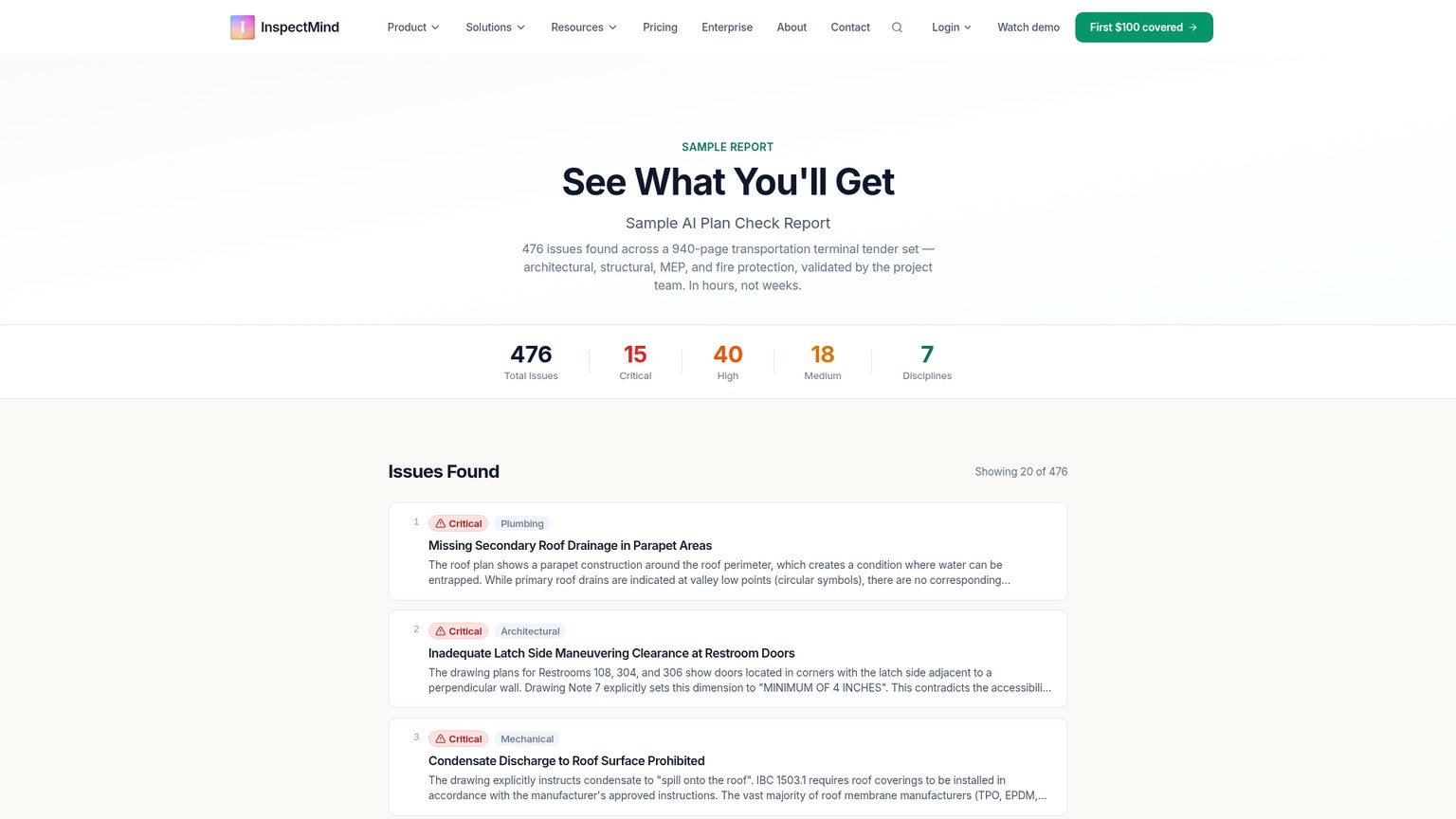

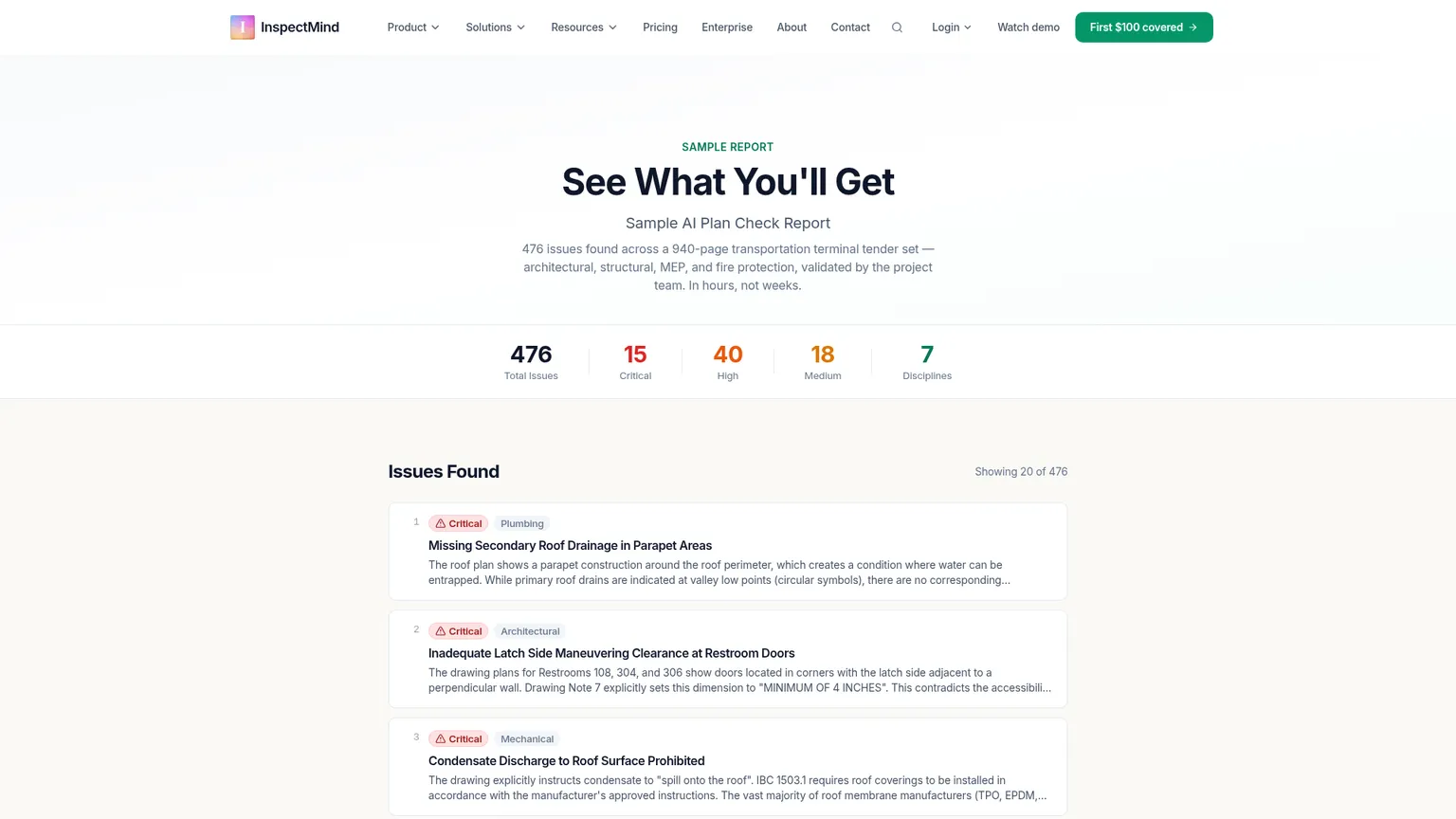

The public sample makes the output style inspectable. It presents 476 findings from a 940-page transportation-terminal tender set and displays 20 write-ups. One is titled Missing Secondary Roof Drainage in Parapet Areas. The explanation identifies the condition, points to parapets that can trap water, and says the plan shows primary drains without corresponding secondary drains or scuppers at the main drainage locations.
That is a useful review prompt because it names the condition and tells the reviewer where to look. It is not enough to certify a violation. The public page does not expose the original drawing sheet, applicable jurisdiction, complete code context, or every project assumption needed to confirm the finding. InspectMind's own verification guidance says the public sample is anonymized and directs customers to check original sheets inside their project report.
This distinction is the heart of the product. A weak AI comment says, "Check roof drainage." A stronger candidate says what appears missing, where the evidence sits, and why it matters. The qualified reviewer still decides whether the document set truly omits the secondary path, whether another detail resolves it, and which code edition applies.
The same caution applies to InspectMind's published issue-count benchmark. The vendor reports a 497-project dataset with a median of 87 surfaced findings, an average of about 175, a range from 1 to 5,199, and a rule of thumb near 70 findings per 100 sheets. Those numbers describe output volume, not accuracy. They do not reveal how many findings qualified reviewers accepted, how many were duplicates, or how many material defects the system missed.

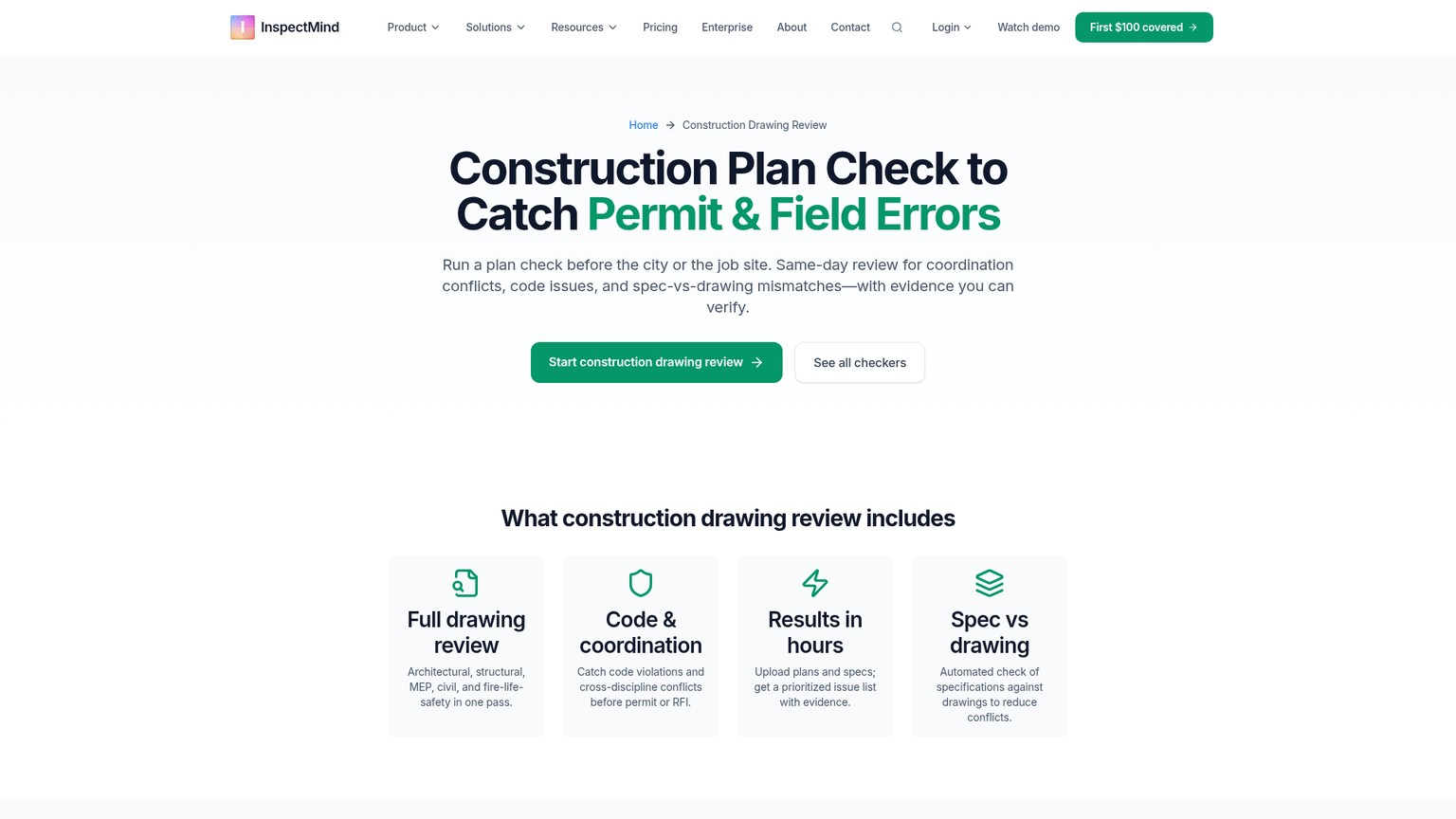

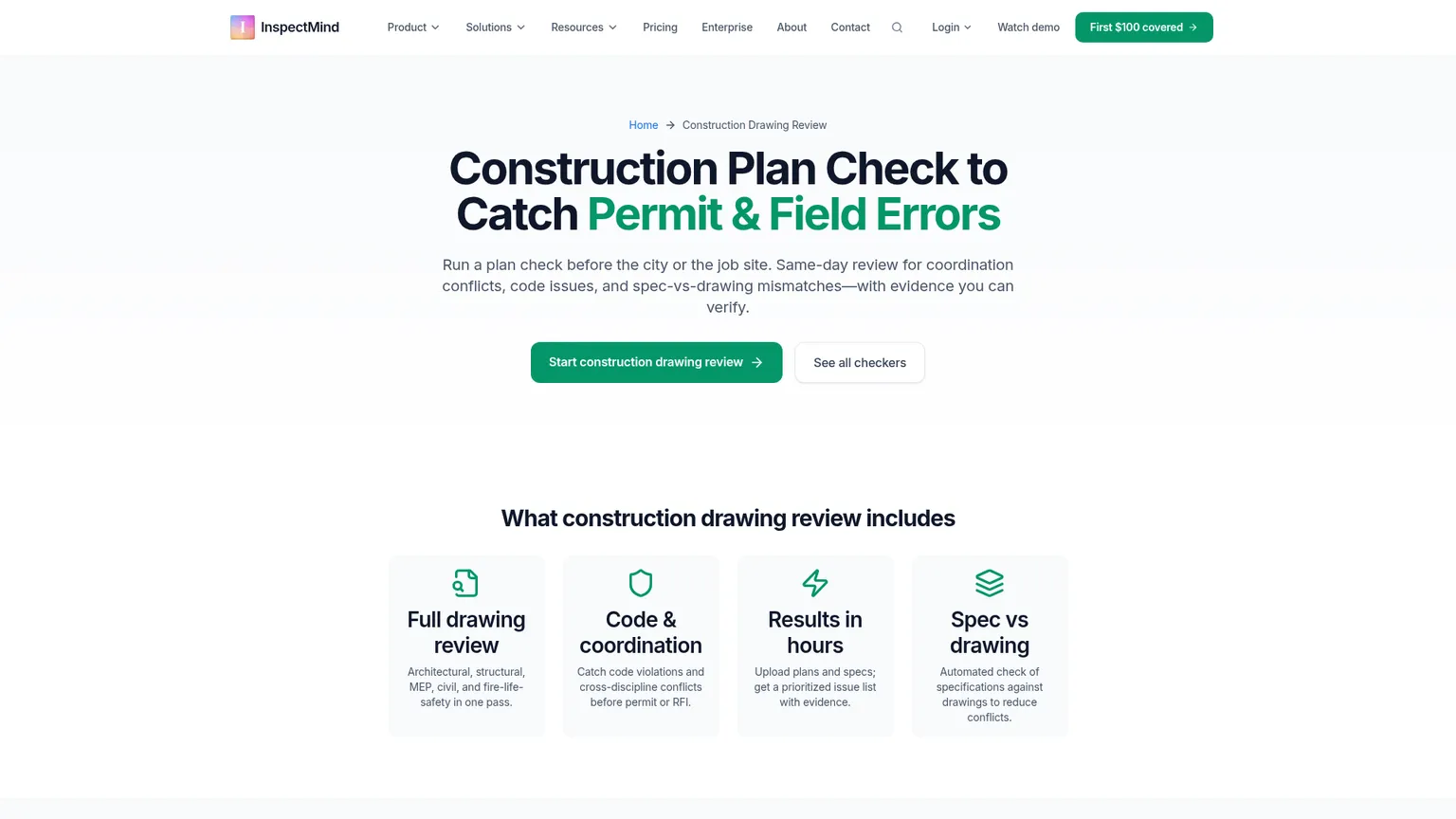

AI Construction Drawing Review Across Documents
InspectMind AI is most differentiated when the answer lives between documents. A single-sheet text search can find a note. A useful AI construction drawing review must connect an architectural dimension to a structural detail, an equipment schedule to an MEP route, a drawing callout to a specification, or a local requirement to a design condition.
Consider a 250-sheet issue set with architectural, structural, and MEP drawings, two selected codes, the project specifications, and a firm's internal QA checklist. InspectMind's role is to generate review candidates such as a dimension conflict, a specification mismatch, a missing reference, or a code question. The architect or engineer then checks the cited source in context. The contractor may price the consequence. The issue owner decides the correction. The software accelerates discovery; it does not inherit professional responsibility.
Keep three adjacent jobs separate:
- Plan-set QA looks for conflicts, omissions, and code questions across design documents. This is the core InspectMind Checker job.
- Submittal review compares proposed products, data sheets, certifications, and substitutions with specifications and design intent. InspectMind offers a separate Submittal Checker, but the architect or engineer retains approval authority.
- Field reporting and punch lists document what exists on site through photos and notes. InspectMind Field Reports is a separate product. A field report cannot prove the design set was coordinated, and a plan checker cannot prove what was installed.
If the bottleneck is evidence capture during an inspection rather than drawing QA, the AI for property managers workflow shows how Mitti turns structured photos and checklist observations into a reviewed report. That is a different control loop from pre-permit plan review.
Quantity takeoff is different again. Togal AI detects and measures quantities from drawings for estimating. It may belong beside a plan checker, but it does not answer the same question.
- Public, per-check pricing with an exact quote before payment
- Findings designed around source references rather than unsupported conclusions
- Cross-document scope spanning drawings, specifications, selected codes, and internal standards
- No standard per-user fee for sharing results
- No public precision, recall, false-positive rate, or blinded reviewer comparison
- Original sheets are absent from the public sample, so detection quality cannot be independently validated there
- Every revised-set run is charged again at the same per-sheet price
- Professional review remains mandatory for every material finding and every clean result

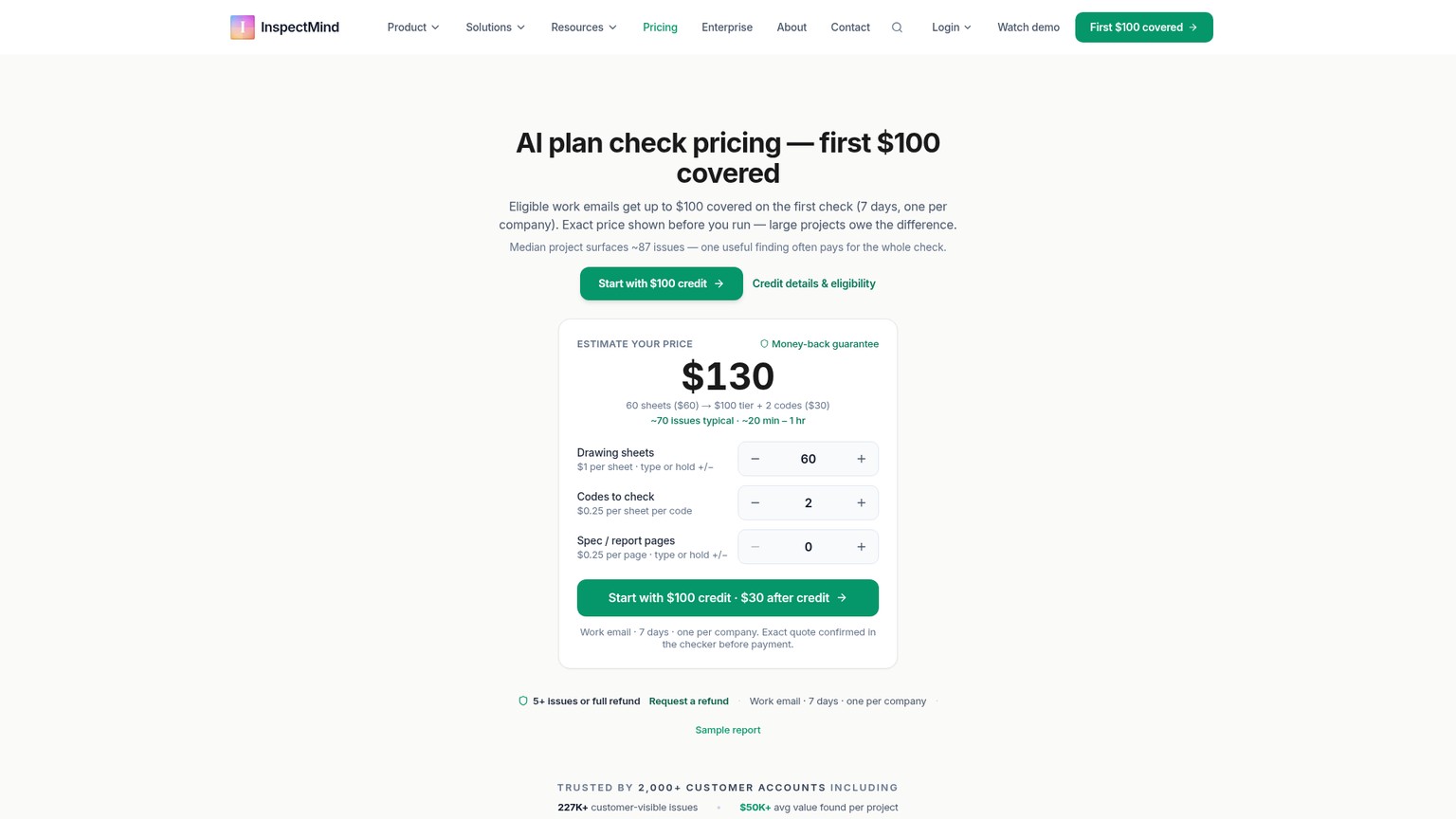

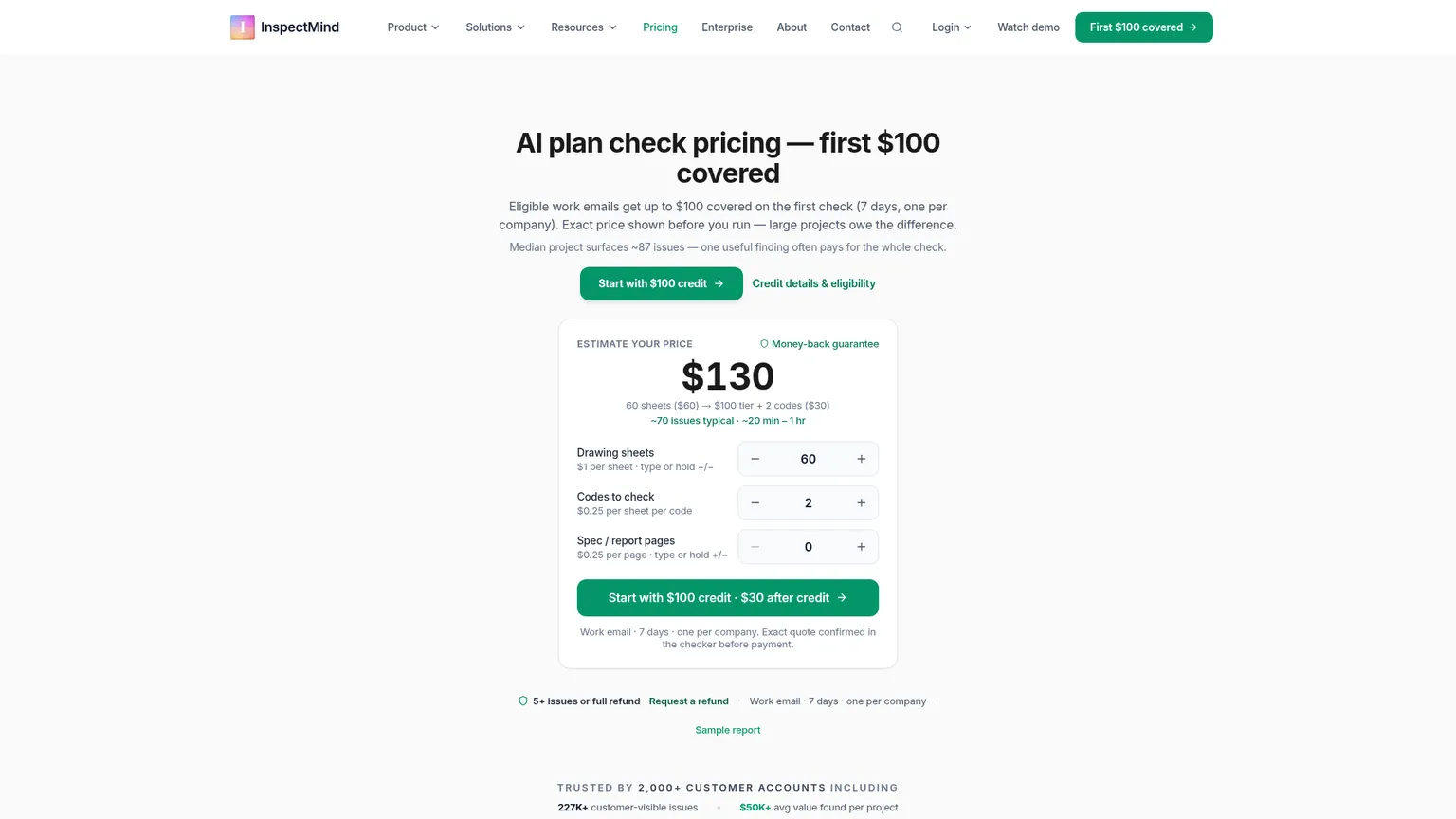

InspectMind Pricing: Every Tier and Recheck Cost
InspectMind pricing is unusually legible for AEC software, but the visible tier is only the file component. Selected code checks sit on top, specification and report pages count toward file cost, and every revision rerun is another paid check. The live rates below were verified on 8 September 2026.
Drawing plus specification or report cost rounds up to the nearest tier through $500. Above $500 of file cost, the calculation becomes per page. The checker confirms the exact line items before payment. High-volume buyers running 250 or more sheets per month can ask for discounted per-check rates, monthly billing, and invoicing, but InspectMind publishes no high-volume dollar schedule.
The site's 60-sheet example makes the surcharge visible. The drawing file rounds from $60 to the $100 tier. Two code checks add 60 × 2 × $0.25, or $30. The total is $130. InspectMind's estimator associates that example with about 70 surfaced findings, so the vendor-estimated cost is $1.86 per candidate finding. That is not cost per validated defect; your acceptance audit determines that number.
Revision economics matter more than the first receipt. InspectMind says a revised set reruns at the same per-sheet price. The 60-sheet, two-code check therefore costs $130 for the first pass and $130 for the recheck, or $260 for the loop. An eligible work-email signup can apply up to $100 to the first check for seven days, one per company, reducing that two-pass loop to $160.
A 250-sheet set with two code checks costs $250 plus 250 × 2 × $0.25, or $375 per pass. One recheck makes the full loop $750, or $650 after an eligible $100 first-check credit. The recheck is where a cheap trial becomes a repeatable budget line.
The guarantee is narrower than "satisfaction guaranteed." InspectMind promises a full refund if the check does not find at least 5 meaningful issues. That protects against an empty report. It does not establish that a finding is correct, complete, consequential, or cheaper to verify than the review process it joins.
InspectMind Limitations That Change the Decision
InspectMind AI has a stronger public evidence model than a generic chatbot, but its public proof still stops before the metric a technical buyer needs most: validated detection quality.
No published precision, recall, or miss rate
InspectMind's public accuracy page explains why evidence makes a finding reviewable, but it does not publish precision, recall, a false-positive rate, a miss rate, or a blinded comparison against licensed reviewers. The case-study dataset counts surfaced issues. A high count cannot show how many were accepted or what the model failed to flag.
This omission changes the pilot. Do not ask whether the report looks impressive. Ask how many high-severity candidates survive review, how often the citation points to the correct source, which known issue was caught, and whether the clean control attracted unsupported comments.
Evidence still needs context
InspectMind's public sample shows well-formed explanations but withholds the original sheets. That protects project privacy, yet it prevents an outside reader from validating the core detection claim. Even inside a customer report, a citation can be accurate while the conclusion is wrong because another detail, exception, revision, or code edition resolves it.
The product's own guidance is appropriately cautious: AI findings can be wrong or incomplete, a clean report does not establish compliance, and professional judgment remains responsible for the decision. A team without a qualified reviewer has not bought plan review. It has bought a list it cannot safely adjudicate.
Rechecks are not included
InspectMind charges a revised-set rerun at the same per-sheet price. That is simple, but it makes iterative design cadence the cost driver. A firm checking 30%, 60%, 90%, and final documents buys four checks, not one continuing review. High-volume terms may improve the rate, but the public site requires contact for those numbers.
Standard data handling is not zero retention

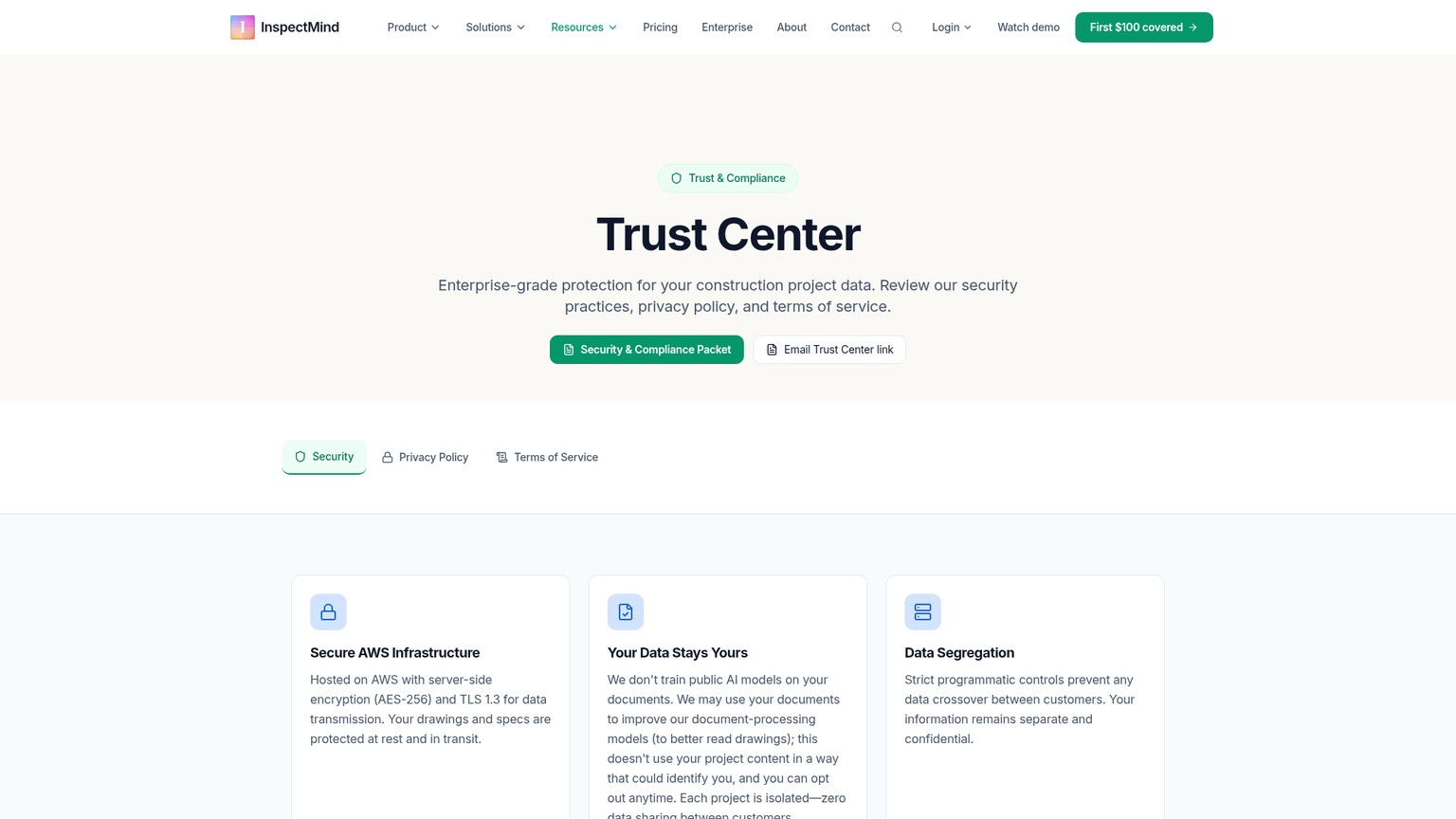

InspectMind stores project data in AWS US-West-2 and states that it uses AES-256 server-side encryption, TLS 1.3 in transit, customer segregation, and role-based access controls. It says third-party LLM providers are contractually barred from training on customer content.
The important qualification sits beside those controls. InspectMind may use customer documents to improve its own document-processing models unless the customer opts out through support. Customers can delete data in the app or request deletion; automatic deletion after 30, 60, or 90 days is described for Enterprise. A confidential project team should settle opt-out, retention, backup, deletion, access, and data-processing terms in writing before upload.
The product family can blur the job
InspectMind also offers Submittal Checker and Field Reports workflows. Those are adjacent, not evidence that one check covers procurement approval or installed conditions. Define the input and accountable output for each workflow. A drawing conflict, a noncompliant product submittal, and a field punch item require different evidence and different sign-off.
Verdict: When InspectMind Is Worth It
InspectMind AI is worth a bounded pilot for AEC teams that already perform plan QA and can measure whether cited findings reduce search time. The public $50 starting price, pay-per-set model, and price-before-payment flow make the first experiment easy to budget. The evidence-linked output gives it a credible advantage over asking a general chatbot to interpret drawings without controlled references.
It is not ready to inherit sign-off. The missing public accuracy metrics, anonymized sample, full-price rechecks, and opt-out requirement for first-party document-model improvement all belong in the buying decision.
The Monday move
Run one controlled evaluation on a permitted, completed project before placing a live deadline behind the tool.
Choose the known set
Use a project your team is allowed to upload. Record one known issue, one clean control area, the correct drawing revision, and the applicable code edition before the run.
Price the full loop
Select drawings, specifications, and code checks in the public checker. Capture the exact quote, then add the same scope once more for the likely revision recheck.
Review the evidence
Have the responsible architect or engineer adjudicate the findings. Record accepted, dismissed, duplicate, wrong-source, wrong-code, and needs-more-context outcomes, plus review time.
Check the misses
Confirm whether the known issue appeared and whether the clean control stayed clean. Review the actual source sheets instead of accepting severity labels.
Set the rollout rule
Proceed only if evidence reduces reviewer effort and the accepted findings justify repeat-pass cost. Put human ownership, retention terms, and the stop condition into the standard operating procedure.
Frequently Asked Questions
InspectMind reviews
Treat customer quotes, case studies, and issue-count benchmarks as vendor evidence. A decision-grade InspectMind review should measure citation accuracy, accepted findings, consequential misses, and reviewer time on a permitted known set rather than repeat the largest reported issue count.
InspectMind AI funding
Y Combinator lists InspectMind AI as an active Winter 2024 company, founded in 2023 and based in San Francisco. That establishes company background, not product accuracy. See the current Y Combinator company page.
Free AI for construction drawings
InspectMind is not an unlimited free AI for construction drawings. Eligible work-email signups can receive up to $100 toward the first check for seven days, one per company. Larger checks owe the difference, and later checks use the published pay-per-check rates.
Togal AI
Togal AI is an estimating and quantity-takeoff tool that detects, measures, and compares items from drawings. InspectMind generates candidate plan-QA findings across drawings, specifications, and selected codes. Use Togal for quantities and InspectMind for review questions; neither replaces the other's workflow. See Togal's current product page.
