Model Router: How LLM Routing Works and How to Test It

Your strongest model should handle the work that needs it. An authenticated order-status reply and a disputed refund involving contradictory records should not automatically take the same path. The difficult part is recognizing the difference before a cheap answer creates expensive rework.

The product behavior below was verified against live documentation on 21 October 2026. The support workload and calculations are illustrative, not production measurements or vendor savings claims.

What a model router does

A model router is a rule or learned classifier that picks which large language model, or LLM, answers each request. A classifier assigns an input to a category. The router might use your application's task type, the conversation, required tools, input size, or an estimate of difficulty to choose a model.

Think of a dispatcher assigning work to a support team. A routine lookup goes to someone who can handle it efficiently; a disputed case goes to a specialist. The dispatcher also needs an escalation rule for work nobody is authorized to complete.

In an application, that means checking eligibility before optimizing: can this model handle the input, call the required tools, and run through an approved provider? Only eligible candidates should compete on cost or expected quality.

Model routing, provider routing, and fallback answer different questions. Model routing chooses the answering model. Provider routing chooses where to run a selected model, such as between hosting providers. Fallback chooses what to try when an attempt fails. A gateway, the access layer between your app and model APIs, can implement all of these, but merely adding a gateway does not create a quality-aware model selector.

A frontier model here means the strongest general-purpose candidate you are considering. It remains capable of giving a wrong answer. Routing allocates capability; it does not establish truth.

The three kinds of model routing

Begin with rules you can explain. Automatic selection becomes valuable when it handles variation that those rules miss, while still passing your acceptance checks. These are three implementation choices, with overlap: a gateway can host a trained router.

Rules you write

Your application maps known task types and constraints to models. A request from an order-status endpoint, carrying authenticated order data and an approved response template, is a stronger small-model candidate than a message classified as easy because it is short.

Rules are useful when the application already knows the workflow. Their wall is ambiguity: the same endpoint may receive a straightforward lookup or a complaint involving contradictory records. Preserve an explicit uncertain route instead of adding an ever-growing list of fragile keywords.

A gateway's auto-routing

You send a request to a routing alias and the gateway selects a model. Depending on the product, that selection can use a classifier, configured tiers, or other signals. You gain centralized behavior, but you inherit the router's definition of a good match.

Choose this when incoming tasks vary and operating your own selector is disproportionate. Keep an approved candidate set and record the model that actually answered. An alias is not a stable model identity.

The LLM Model Router Learning Loop

A trained router learns which candidate is likely to perform better from examples and outcome labels. The useful training question is whether the stronger model adds value on this request, not simply whether the text looks complicated.

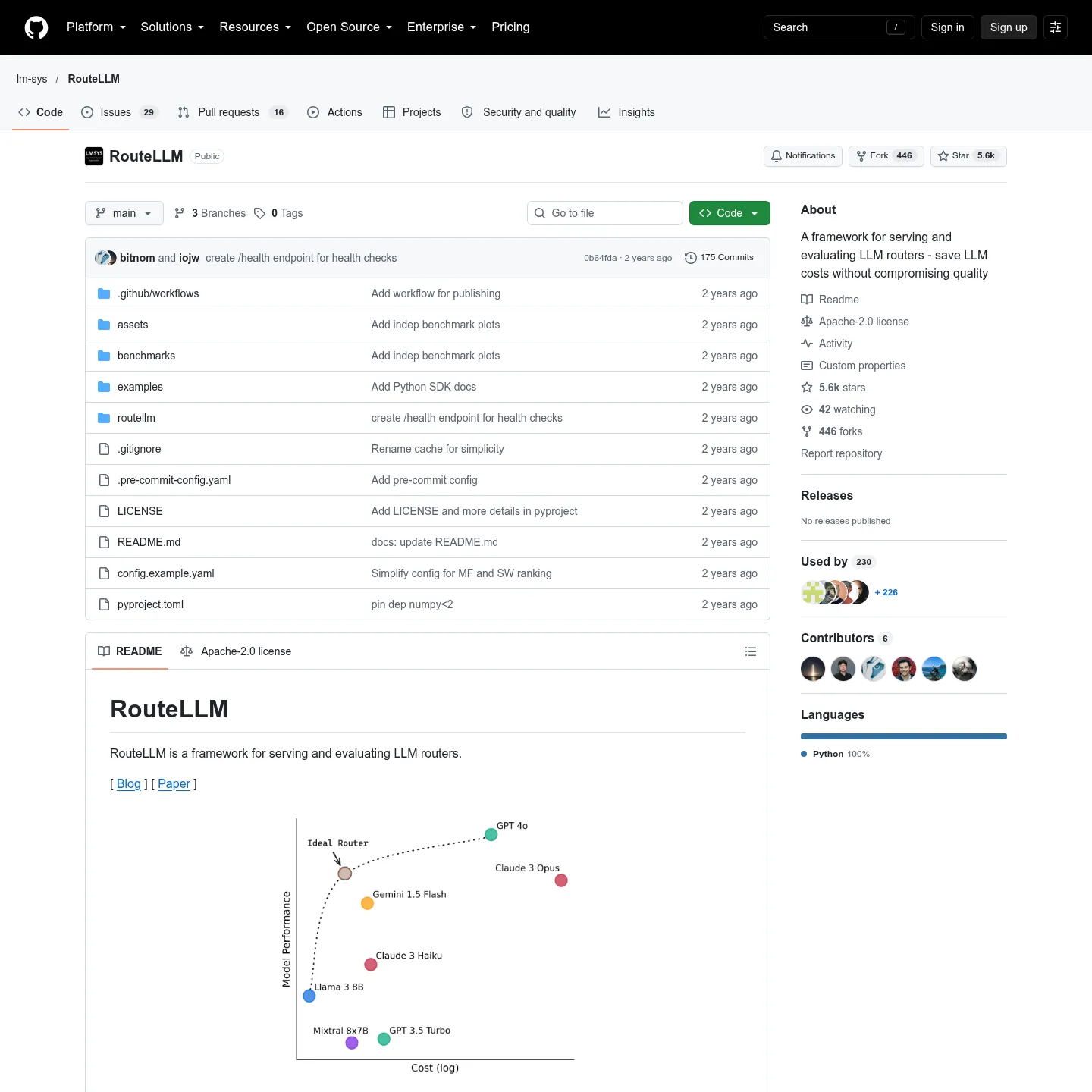

RouteLLM, an open-source framework for serving and evaluating routers, documents preference-trained selection between stronger and weaker models and threshold calibration. Its threshold controls how frequently the stronger model is selected. Its published results do not establish performance on your tickets. RouteLLM documentation.

The maintenance wall is distribution change: new task types or replacement models can invalidate a previously useful threshold. Train or calibrate on development examples, then evaluate on separate cases the router has never been tuned against.

A support-app routing policy, worked through

Route grounded, bounded replies to the small model; route unresolved reasoning to the frontier model. Keep authorization decisions in application policy. Neither model earns permission to issue refunds just because it can explain one.

Imagine a subscription retailer whose app retrieves the customer's order, relevant policy, and conversation history before drafting a reply. The following is a proposed policy, not a claim that any particular small model already passes it.

The small route should abstain when required evidence is absent. Your application can check missing order fields, invalid output structure, or a requested action outside the permitted workflow. A factual contradiction may need a separate verifier or human review. A syntactically valid answer can still be wrong.

Use the frontier model for the difficult subset, and escalate a failed small-model attempt only when the failure is detectable. Missing records require retrieval or clarification; sending the same missing evidence to a bigger model does not repair it.

Count the escalated calls

Suppose an illustrative batch contains 1,000 requests. Your policy sends 700 to the small model and 300 directly to the frontier model. Of those initial small-model calls, 70 fail a check and are rerun on the frontier model.

You now pay for 700 small-model calls and 370 frontier calls, plus routing and validation. That is 1,070 answering-model calls, not 1,000. A retry is additional work even when the user sees only the final reply.

Let r be average routing cost per original request, s average small-model call cost, f average frontier call cost, and g additional batch-level gateway or validation charges. For this simplified example, assume the frontier average is the same across the baseline, direct calls, and escalations:

Routed cost = 1,000r + 700s + 370f + g

All-frontier baseline = 1,000f

Routing is cheaper only when 700(f − s) > 70f + 1,000r + g. The left side is the initial answering cost avoided on the small route; the right side is the extra frontier retries and overhead.

Populate call costs using the models and rates you choose: call cost = (uncached input tokens × input rate + cached input tokens × cached rate + billed output tokens × output rate) / 1,000,000, when rates are quoted per million tokens; add separately billed tools and request charges.

In production, replace the simplified averages with actual usage by task and route. Difficult tickets may generate longer answers, reruns may carry more context, and switching models may change cache reuse. Include router classifier tokens and billed reasoning tokens where applicable, without counting the same charge twice. Compare both systems under the same retry policy.

The useful outcome is lower cost per accepted resolution, with the quality floor preserved. A lower bill accompanied by more unsupported refund promises fails that test.

What the documented routing options do

Inspect the selection mechanism before adopting a routing endpoint. These products expose different decisions; the shared word “router” does not make their defaults equivalent.

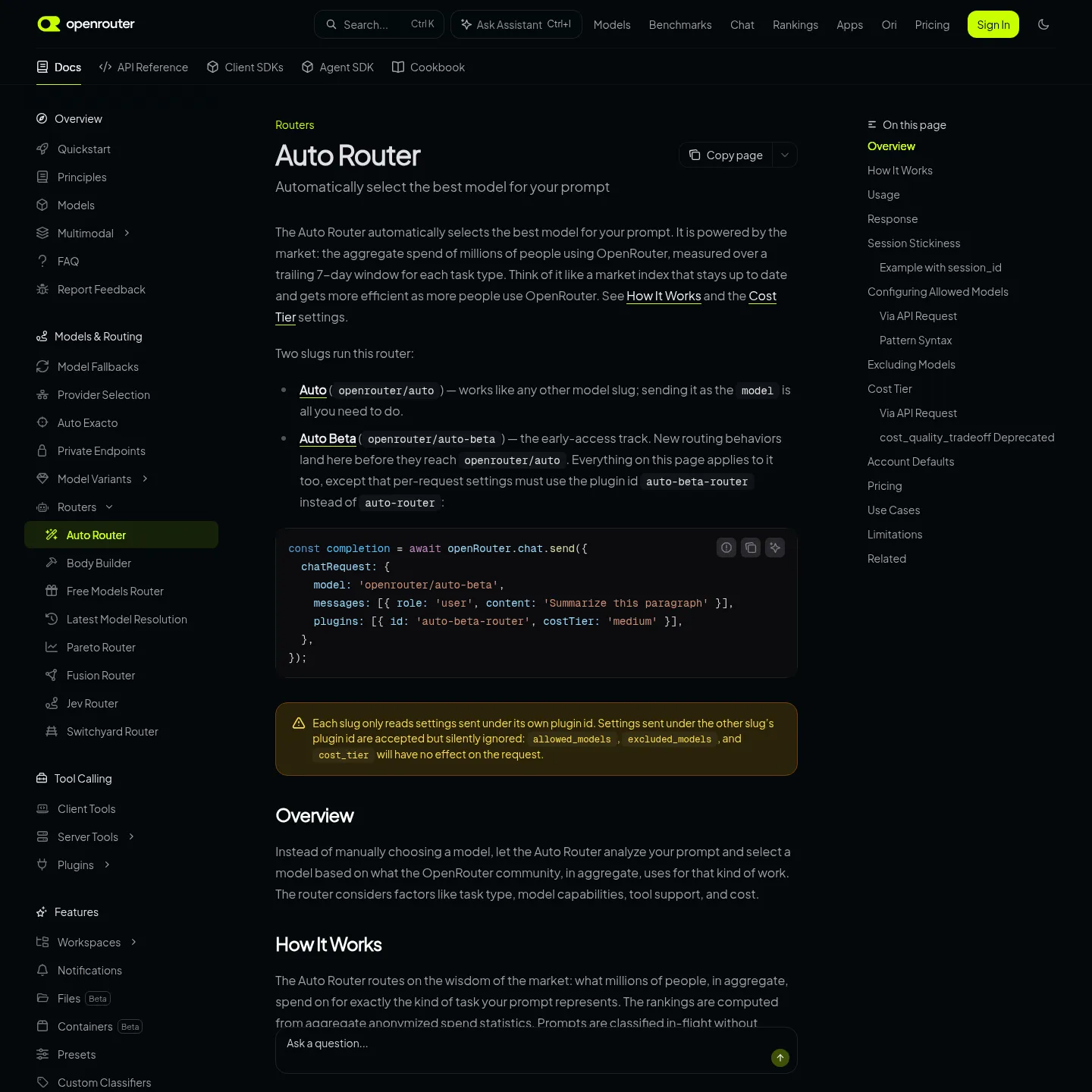

OpenRouter: task-aware Auto Router

OpenRouter, a managed gateway to multiple model providers, exposes Auto Router through openrouter/auto. Its current docs describe task classification followed by model ranking using task-specific community spend over a trailing 7-day window, then cost-band and eligibility filtering. This is an aggregate usage signal, not your support-quality rubric. Auto Router documentation.

The cost_tier options are low, medium, high, xhigh, and max; the default behaves roughly as low. A tier is a band, not a hard spending ceiling. Restrict candidates with allowed_models and excluded_models, and log the response's model field. Conversation stickiness can preserve a selection, but does not guarantee it stays fixed.

With an API key set in your environment, this sends a minimal routing request:

curl --fail-with-body https://openrouter.ai/api/v1/chat/completions \
  -H "Authorization: Bearer $OPENROUTER_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "model": "openrouter/auto",
    "messages": [{"role": "user", "content": "Rewrite this status politely: Your parcel is in transit."}],
    "plugins": [{"id": "auto-router", "cost_tier": "low"}]
  }'

Use a constrained candidate set for your eval. Otherwise a changing model pool makes yesterday's quality result harder to interpret.

LiteLLM: distinguish deployment routing from Auto Router

LiteLLM, a configurable LLM gateway, documents deployment strategies including weighted selection, least-busy, latency-based, and cost-based routing. Its default simple-shuffle strategy is not a classifier of support-ticket difficulty. Router documentation.

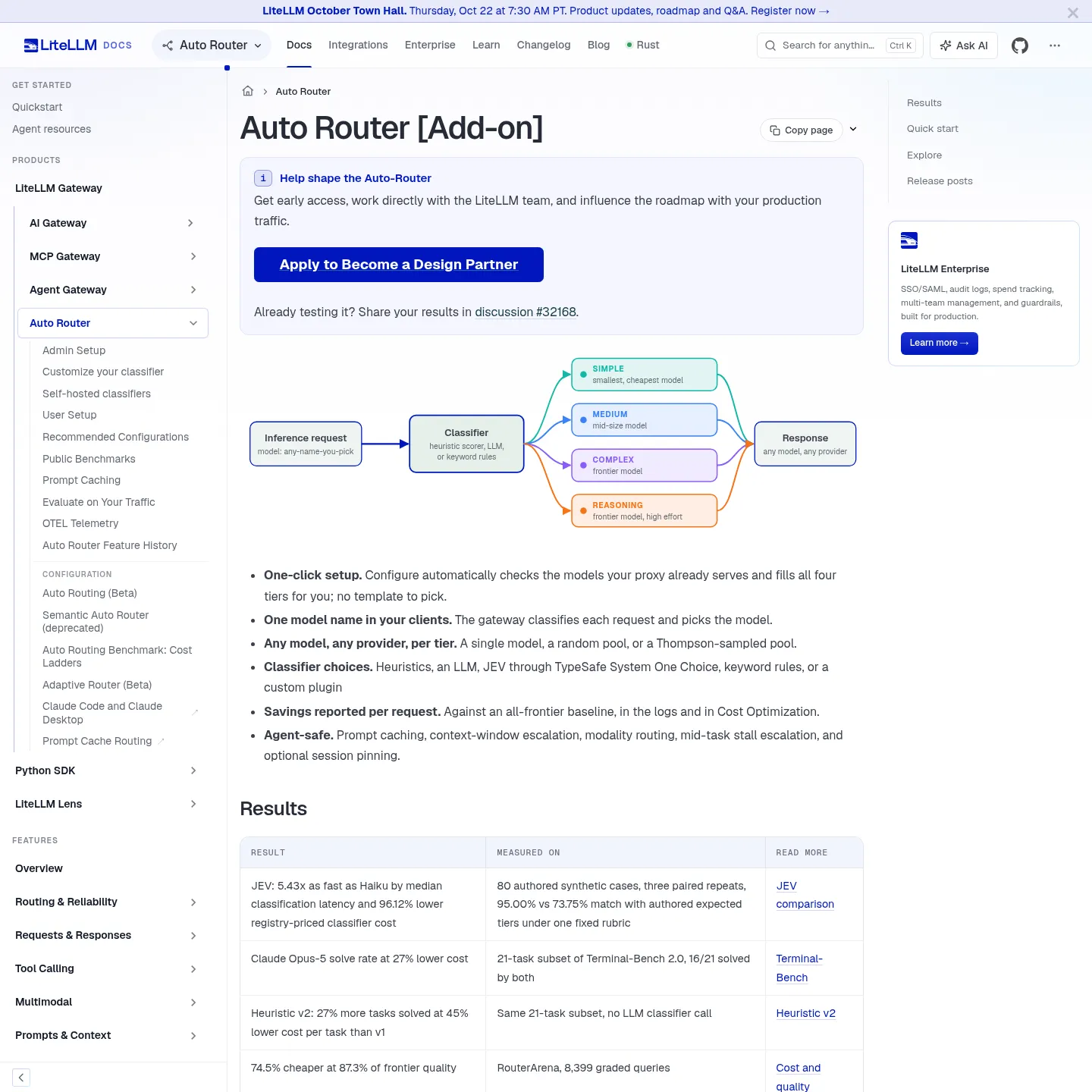

Its separate Auto Router documents heuristic, LLM, keyword-rule, and custom-plugin classifiers. The SIMPLE, MEDIUM, COMPLEX, and REASONING tiers map to configured models or pools. In the dashboard, the documented setup is Models + Endpoints → Add Model → Auto Router, followed by configuration and Test Routing. Auto Router documentation.

This fits builders who need control over candidate models and classification behavior. The wall is operational ownership: selecting a tier mapping does not validate it against your acceptance rules. The LiteLLM vs OpenRouter comparison covers that infrastructure decision in more detail.

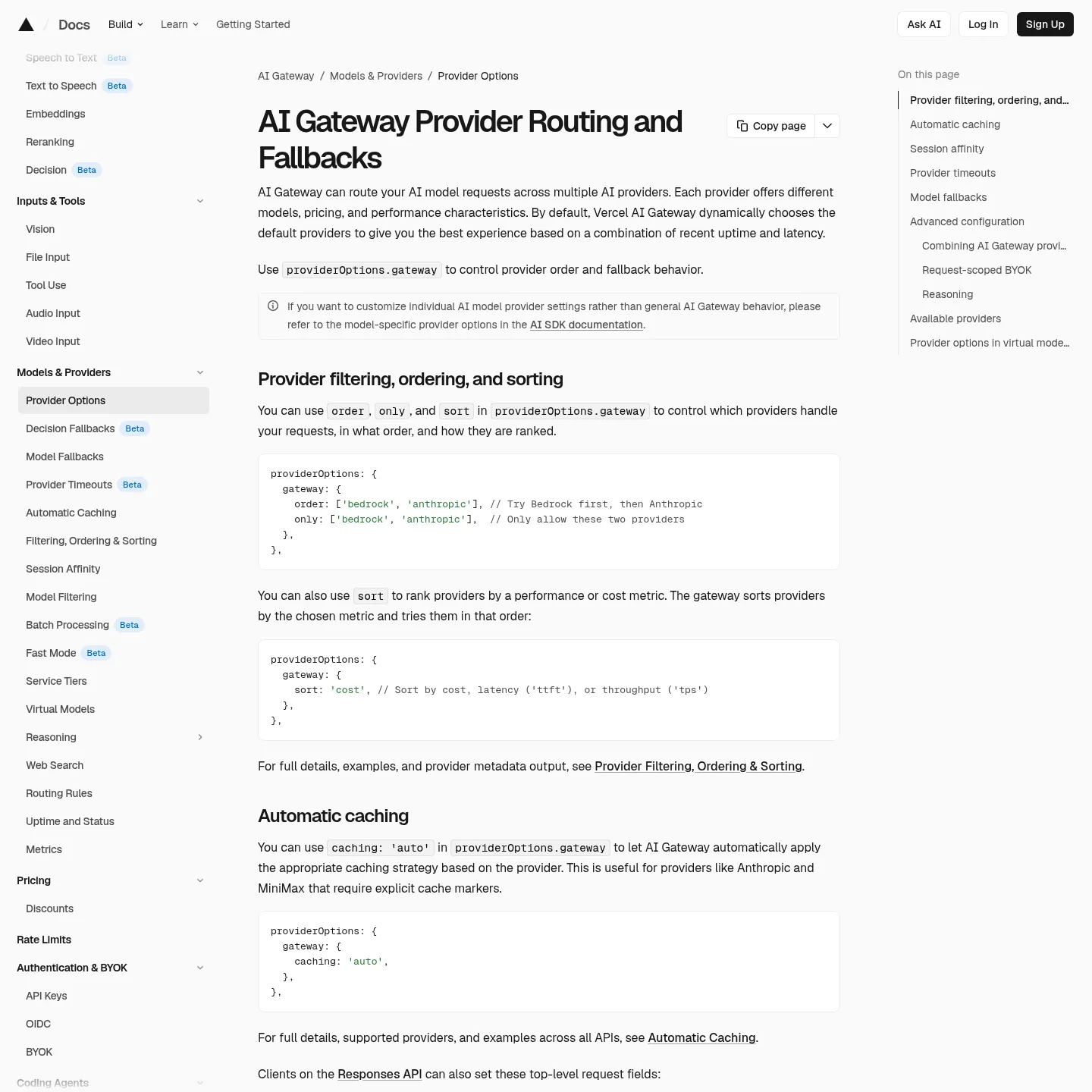

Vercel AI Gateway: provider choice and explicit routing controls

Vercel AI Gateway, a managed access layer for model APIs, chooses default providers using recent uptime and latency. Its provider options control ordering and filtering; string model fallbacks try backup models when the primary fails or is unavailable. These are useful reliability mechanisms. They do not, by themselves, decide whether a support ticket needs a frontier model. Provider routing and fallback documentation.

Gateway routing rules also support rewriting a requested model to another model or denying it. A rewrite can migrate traffic centrally, but replacing every request for one model is different from classifying each request's difficulty. Routing rules documentation.

Use these controls beneath an application-level selection policy when you need explicit behavior. The wall is assuming an automatic provider choice includes automatic task-quality selection. For the broader access-layer choice, see AI gateways for multi-model apps.

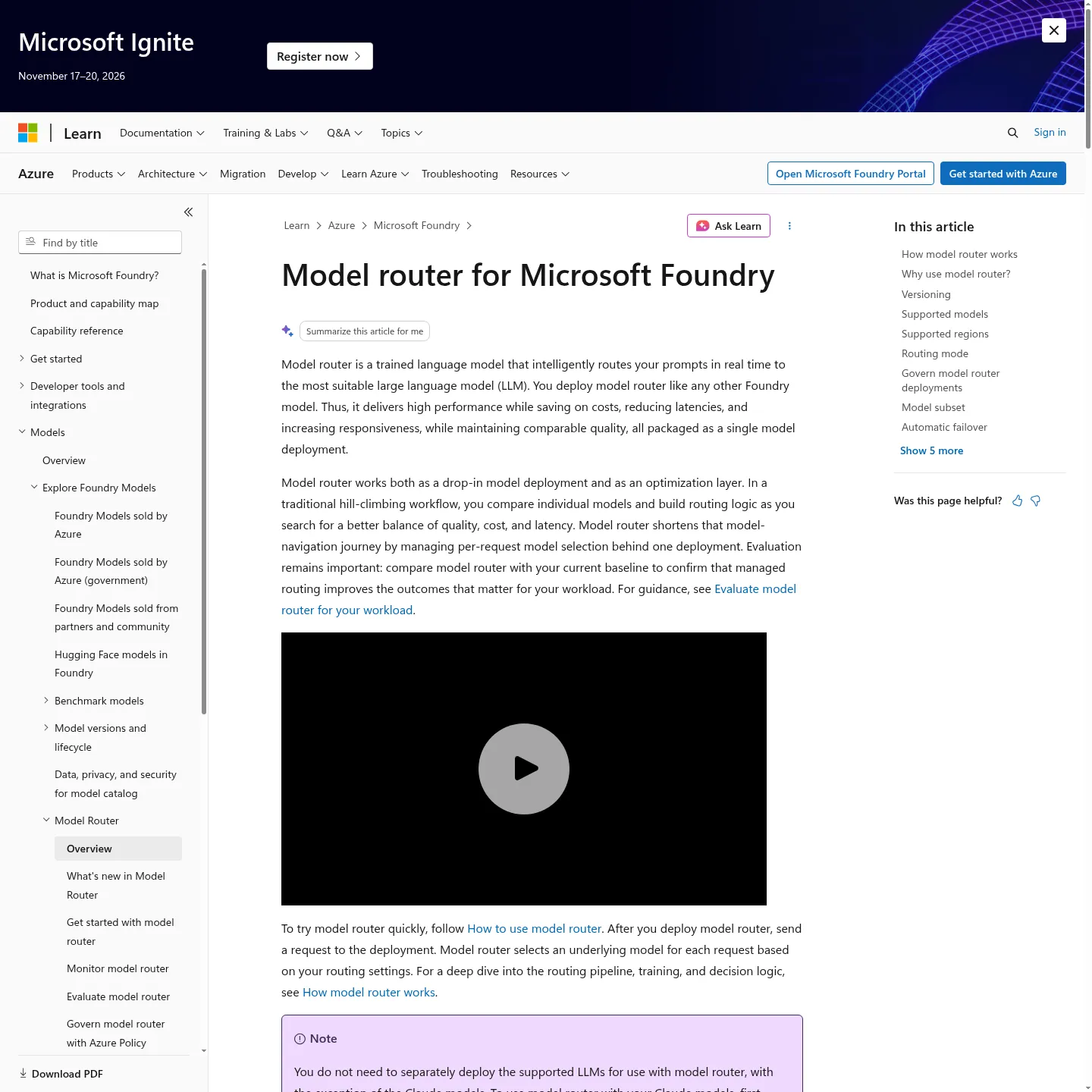

Microsoft Foundry: a provider-managed trained router

Microsoft Foundry model router is a trained model selector exposed as a deployment. Microsoft describes selection using complexity, reasoning, task type, and other attributes. It offers Balanced, Quality, and Cost modes, plus model subsets. Model router concepts.

This fits an application already using Foundry that wants managed selection among eligible models. The important wall is the candidate set: region and access affect availability, and Microsoft's docs warn that the smallest underlying context window limits what the router can reliably accept. Restrict the subset to models meeting your input requirements.

A mode named Quality is not a substitute for task evaluation. Test the chosen subset with your actual conversation lengths, tools, and acceptance rules.

Choosing an AI Model Router

Keep application rules when you can identify the easy work reliably. Consider managed auto-routing when task variation makes those rules brittle. Consider training a selector when you have enough representative, labeled outcomes to justify maintaining it.

For infrastructure alternatives beyond these mechanisms, the OpenRouter alternatives guide is the next comparison. Your first decision remains the routing policy and its evidence, not a longer provider list.

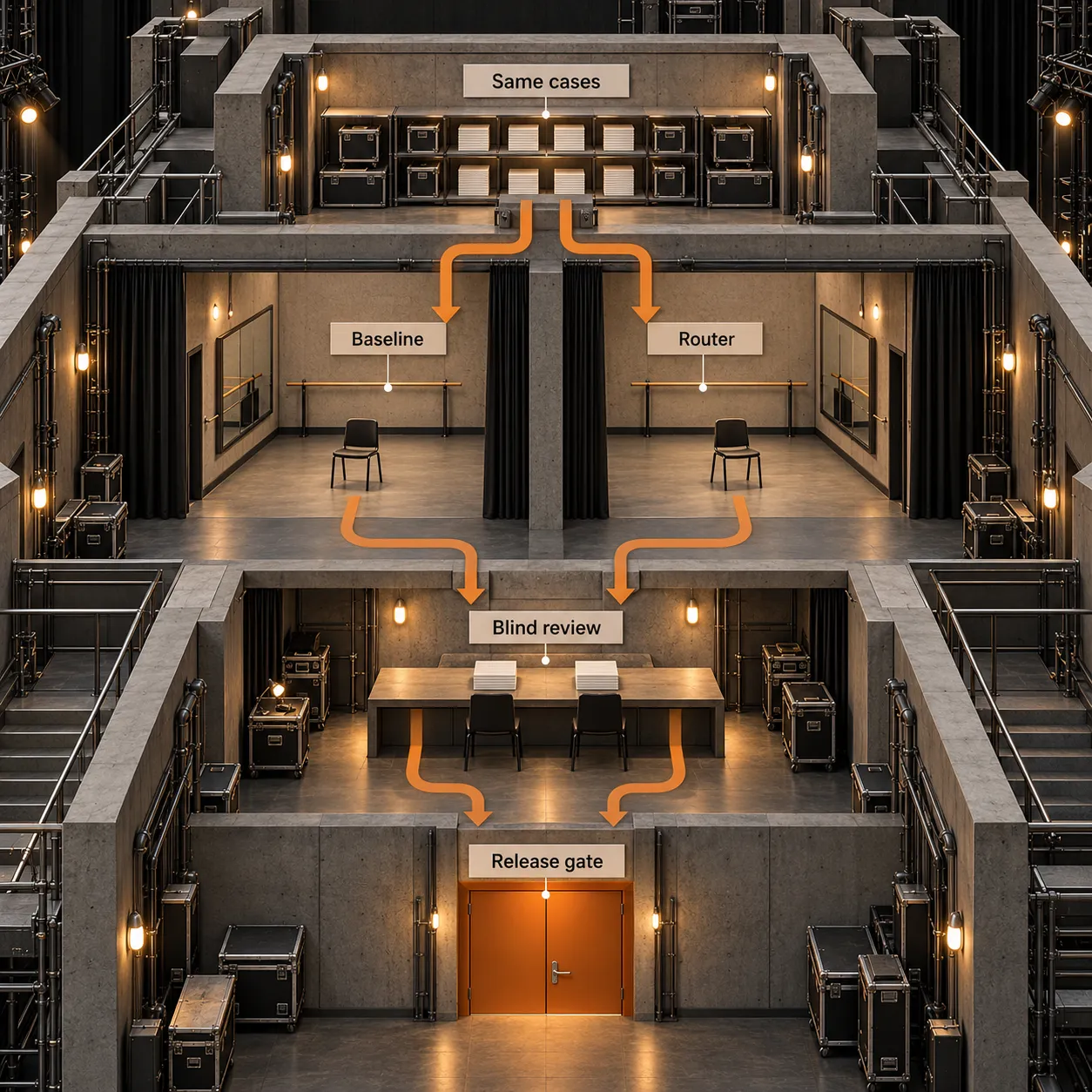

How to measure a router with an eval set

Measure the answers produced by routing, not agreement with labels such as “easy” and “hard.” A selector can classify your task categories accurately and still send the wrong cases to the small model.

An eval set is a repeatable collection of requests, context, and acceptance criteria. For the support app, each case should include the conversation, the order-data snapshot, the applicable policy, expected facts, prohibited claims or actions, and the required escalation behavior.

The scorecard should make expensive mistakes visible:

If no case meets a metric's denominator, report it as undefined, not zero. Estimate the harmful small-route rate using the independently evaluated model outputs, and also report final errors after any escalation. Flag cases where both models fail separately: a selector cannot manufacture an acceptable answer from those candidates.

Decide the acceptable noncritical quality difference before the test, and investigate every new critical regression. Use confidence intervals appropriate to the paired sample; when uncertainty still includes unacceptable loss, gather more evidence rather than declaring equivalence.

Finally, shadow the router on a bounded sample of live traffic while the current model still answers customers. Shadow calls incur additional spend. After reviewing results, use a limited rollout with an immediate return path to the existing model policy. Continue monitoring by request type and rerun the eval when prompts, tools, models, or routing behavior change.

What is overhyped about model routing

“Same quality for less” is a workload-specific finding, not a property of a router. It depends on which requests arrive, which candidates are available, and what counts as acceptable. No savings percentage from someone else's workload substitutes for those measurements.

A successful API response also says little about answer quality. Error fallback can recover from an unavailable endpoint; it does not detect an invented policy in a fluent answer. Quality escalation needs a separate check, and that check has its own error rate and cost.

Difficulty scores deserve the same scrutiny. A classifier's confidence is not automatically the probability that the selected model will answer correctly. Calibrate any threshold against observed task outcomes. Do not allow user text such as “this is easy” to override application permissions or candidate restrictions.

Finally, automatic selection can change even when your application code does not. OpenRouter's spend-based candidates evolve; Microsoft's current model-router version can receive underlying-model additions. Those documented behaviors make candidate logging and evaluation refreshes part of operating the router, not optional cleanup.

Who should act, who should wait, and what to do next

Builders should act when they can isolate repeatable work with a clear pass condition. Add a small route for grounded status replies, keep a conservative uncertain route, and version the policy so failures can be reproduced.

Operators should require evidence at the workflow level. A lower inference bill is insufficient if reopened tickets, human review, or resolution time increase. Track those outcomes alongside the offline eval.

Buyers should ask for a replay of their own cases. Require visibility into selected models and fallback behavior. A general benchmark cannot establish that a router understands your refund policy.

Wait if you cannot define a correct result, cannot constrain the candidate pool, or do not have enough traffic for the operational work to pay back. An application already using a validated small model for a fixed, narrow task may gain little from another selector.

The Monday move: export a representative set of support cases, freeze their evidence, and score your current model beside one smaller candidate. Write a narrow routing rule for the subset where the smaller candidate passes. Give an automatic router traffic only after it beats that rule on cost while meeting the same quality requirements.
